14.9 kV Breakdown Voltage and 216 MPa MD Strength from a PET Polyester Film Factory and Supplier You Can Verify
Product Overview
Mid-gauge insulation film is where buyers often start paying attention to the manufacturer behind the roll. The 75μm PET Polyester Film sits in that zone. It has enough body to handle repeated winding and converting, yet stays thin enough for compact electrical designs. The numbers back it up: 14.9 kV breakdown voltage, 216 MPa MD tensile strength, and just 0.2% TD thermal shrinkage. Those values only hold in production if the PET Polyester Film Manufacturer controls thickness and coating consistency tightly.
Technical Characteristics
The following values are typical data for the 75μm specification. They are not intended as limiting specifications.
- Material: PET (Polyethylene Terephthalate)
- Thickness: 75 μm
- Tensile Strength: MD 216 MPa / TD 224 MPa
- Elongation at Break: MD 173% / TD 159%
- Thermal Shrinkage at 150°C, 30min: MD 1.0% / TD 0.2%
- Breakdown Voltage: 14.9 kV
- Volume Resistivity at 20°C: 2E+17 Ω·cm
- Dissipation Factor at 20°C, 1kHz: 40
- Coefficient of Friction: μs 0.6 / μd 0.4
Key Properties
- 14.9 kV breakdown voltage for mid-gauge insulation
- Balanced MD/TD tensile strength for winding and converting
- Low TD shrinkage for dimensional control
- Stable batch performance from a verified factory
Applications
75μm PET Polyester Film is used for electrical insulation, flyback transformers (FBT), choke coils, wire insulation and cable tape, flexible printed circuits (FPC), membrane switches, die-cut insulation parts, and spiral tube converting. Buyers in electrical, electronic, and flexible circuit manufacturing source this gauge for volume production.
Why Choose Jinlu Film as Your Manufacturer

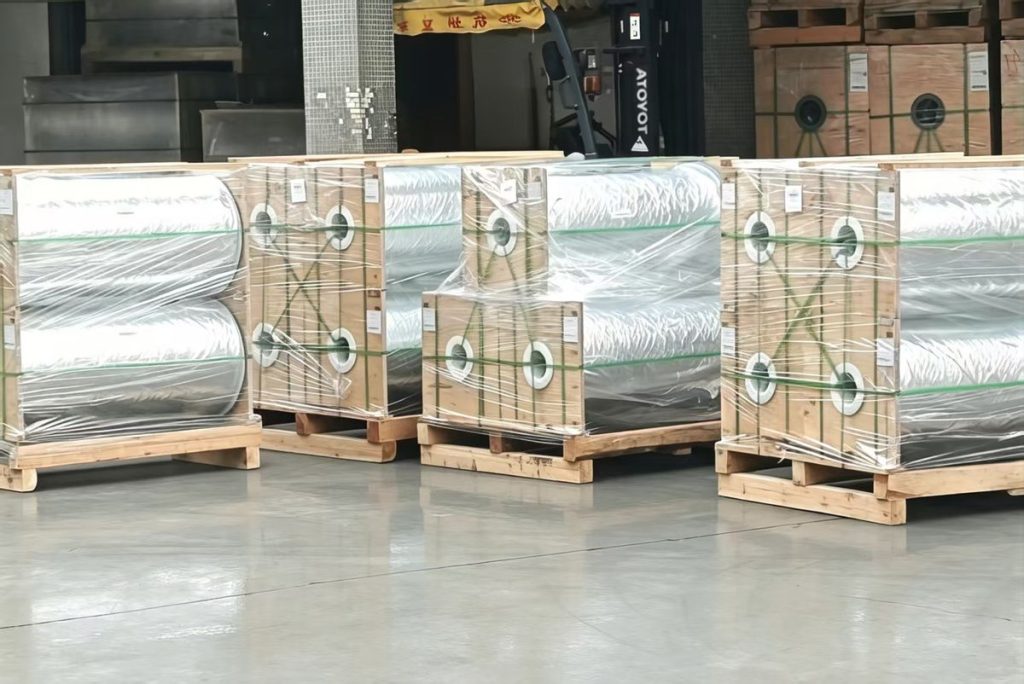

Jinlu Film is a PET Polyester Film Manufacturer, Factory, and Supplier offering factory-direct pricing, consistent thickness control, and stable dielectric performance. As a factory, we support custom width and roll length, export-grade packing, and global shipping. If you are comparing PET Polyester Film suppliers, request a sample and check our batch data against the spec sheet.
Contact us today for a factory quote, technical data, or a sample of 75μm PET Polyester Film.
