11.5 kV Breakdown Voltage and High Stiffness for Motor Slot Liner and Wedge Applications
Product Overview

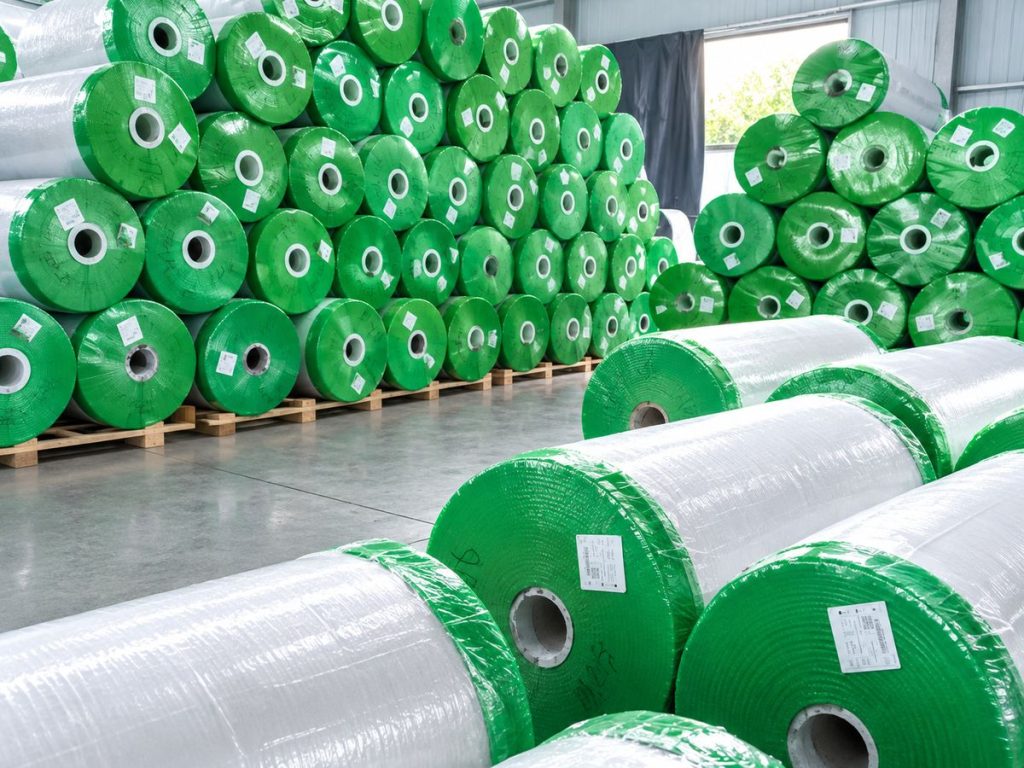

Motor insulation film has to do more than insulate. It has to slide into stator slots without tearing, hold its shape around wedge inserts, and survive automated winding. The 50μm PET Motor Insulation Film is made for exactly this. A hazy surface gives it excellent handling properties, and its good stiffness helps it stay in place once inserted. With an 11.5 kV breakdown voltage and balanced 249 MPa MD/TD tensile strength, it delivers the mechanical reliability motor manufacturing lines need.
Technical Characteristics
The following values are typical data for the 50μm specification. They are not intended as limiting specifications.
- Material: PET (Polyethylene Terephthalate)
- Thickness: 50 μm
- Tensile Strength: MD 249 MPa / TD 249 MPa
- Elongation at Break: MD 152% / TD 152%
- Thermal Shrinkage at 150°C, 30min: MD 1.7% / TD 0.8%
- Breakdown Voltage: 11.5 kV
- Volume Resistivity at 20°C: 5E+17 Ω·cm
- Dissipation Factor at 20°C, 1kHz: 43
- UL746B: RTI Electrical 105°C, Mechanical 105°C
Key Properties
- Hazy surface for excellent handling and anti-blocking
- Good stiffness to be inserted into motor slots
- 11.5 kV breakdown voltage for reliable motor insulation
- Balanced MD/TD tensile strength for automated winding
Applications
50μm PET Motor Insulation Film is used for electrical insulation such as motor slot liners, wedges, and die-cut insulation parts. It suits motor manufacturing, transformer insulation, and general electrical insulation converting.
Why Choose Jinlu Film as Your Manufacturer
Jinlu Film is a PET Motor Insulation Film Manufacturer, Factory, and Supplier with factory-direct pricing, stable thickness control, and consistent dielectric performance. As a factory, we support custom slitting and sheet cutting, export-grade packing, and global shipping. If you are comparing PET Motor Insulation Film suppliers, request a sample and compare our batch data against the spec sheet.
Contact us today for a factory quote, technical data, or a sample of 50μm PET Motor Insulation Film.
