A Step-by-Step Look at Extrusion, Stretching, and Thermal Setting in Modern BOPET Film Production
Product Overview
BOPET (Biaxially Oriented Polyethylene Terephthalate) film is one of the most widely used substrates in packaging, electronics, and industrial applications. But what actually happens between raw polyester pellets and the finished, high-clarity roll? Understanding the BOPET Film Manufacturing Process is crucial for buyers who need to evaluate quality, predict film behavior, and choose the right factory. A well-controlled process yields film with balanced tensile strength, low haze, and excellent dimensional stability.
The BOPET Film Manufacturing Process
The production of BOPET film involves several highly controlled stages:
- Raw Material Preparation and Extrusion
Virgin PET resin pellets are dried to remove moisture, preventing hydrolysis during melting. The pellets are then melted in an extruder and cast onto a cooling drum to form a thick, amorphous sheet. - Machine Direction (MD) Stretching
The cast sheet is passed through heated rollers and stretched longitudinally between a series of rolls running at different speeds. This aligns the polymer chains in the machine direction. - Transverse Direction (TD) Stretching
The film then enters a tenter frame, where clips grip its edges and stretch it sideways in a heated oven. This dual stretching is what gives BOPET its exceptional strength and optical clarity. - Heat Setting and Cooling

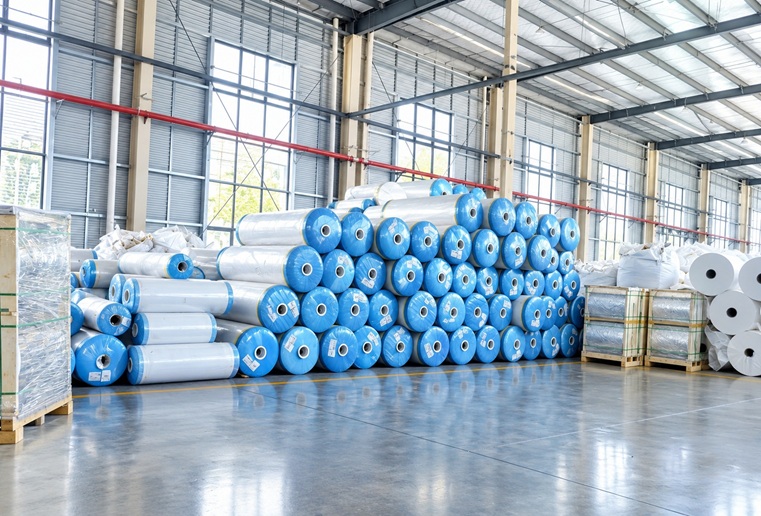

The film is heated under tension to crystallize the structure, locking in its properties and minimizing thermal shrinkage. It is then cooled, trimmed, and wound into large master rolls.
Key Process Parameters
The following typical values demonstrate the capabilities of a modern BOPET Film Production Line:
- Thickness Range: 12 μm up to 500 μm
- Light Transmittance (Optical Grades): 84.0% to 89.0%
- Tensile Strength Range: MD 133 to 271 MPa / TD 139 to 245 MPa
- Thermal Shrinkage at 150°C, 30min: MD 0.9% to 1.5%
- Certifications: RoHS, REACH, UL746B (RTI 105°C)
Why Process Control Matters
A reliable BOPET Film Manufacturing Process ensures consistent thickness tolerance, uniform haze, and predictable electrical insulation. If the stretching ratios or heat setting temperatures are poorly controlled, the film will suffer from high shrinkage, uneven thickness, or reduced breakdown voltage.
Why Choose Jinlu Film as Your Manufacturing Partner
Jinlu Film is a leading BOPET Film Manufacturer and Factory with decades of experience in production process control. We source premium raw materials and utilize advanced biaxial stretching lines to ensure batch-to-batch consistency. If you are researching How BOPET is Made or looking for a reliable supplier, request our technical data or factory audit report today.
Contact us today to discuss your BOPET film requirements or request a sample.
