Massive 39.6 kV Breakdown Voltage and Maximum Stiffness from a Premier PET Motor Insulation Film Manufacturer
Product Overview

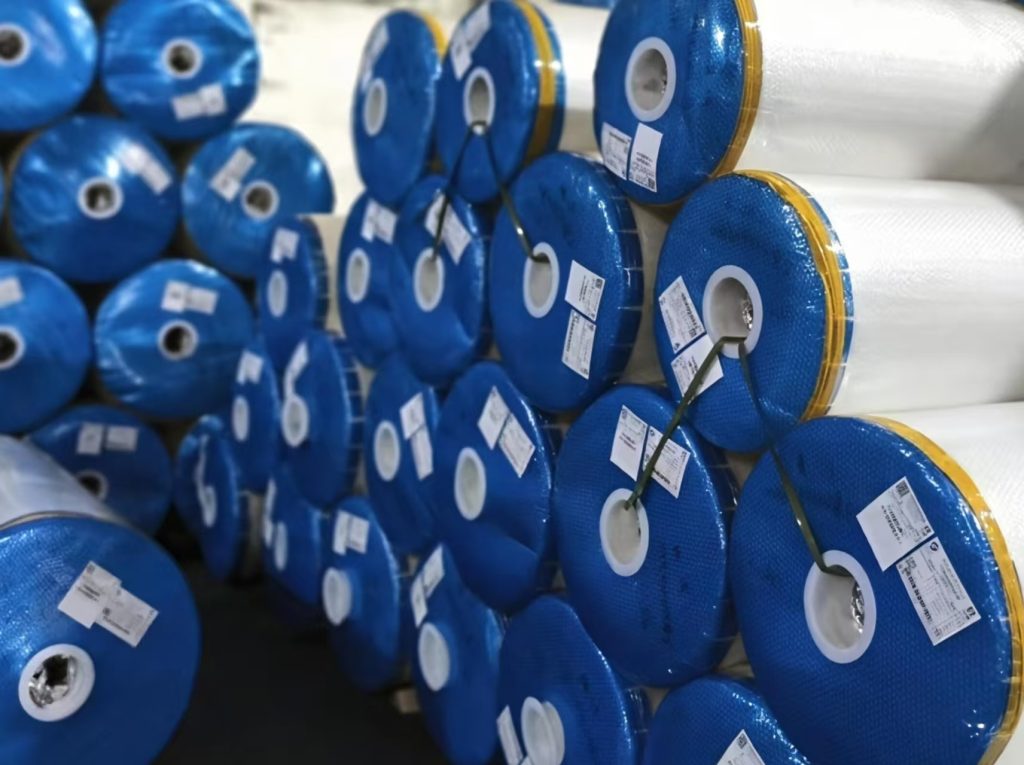

When standard heavy-duty films are still not enough, engineers turn to the thickest gauge available. The 500um PET Motor Insulation Film (nominal 500um, actual 480um) is the ultimate solution for extreme environments. It is engineered for the deepest stator slots, the highest voltage classes, and the most punishing automated winding processes. Despite its extreme thickness, it retains a 244% MD elongation, meaning it can absorb immense mechanical stress without cracking. With a staggering 39.6 kV breakdown voltage, it ensures absolute dielectric safety for the largest industrial and EV motors.
Technical Characteristics
The following values are typical data for the 500um (actual 480um) specification. They are not intended as limiting specifications.
- Material: PET (Polyethylene Terephthalate)
- Thickness: 480 μm (nominal 500um)
- Tensile Strength: MD 133 MPa / TD 139 MPa
- Elongation at Break: MD 244% / TD 212%
- Thermal Shrinkage at 150°C, 30min: MD 0.9% / TD 0.4%
- Breakdown Voltage: 39.6 kV
- Volume Resistivity at 20°C: 3E+17 Ω·cm
- Dissipation Factor at 20°C, 1kHz: 40
- UL746B: RTI Electrical 105°C, Mechanical 105°C
Key Properties
- Massive 39.6 kV breakdown voltage for extreme high-voltage motors
- 244% MD elongation for unparalleled mechanical toughness
- Hazy surface for reliable handling and anti-blocking
- Maximum stiffness ensures it stays rigidly in place in the deepest slots
Applications
500um PET Motor Insulation Film is used for extreme electrical insulation such as large industrial motor slot liners, heavy wedges, and thick die-cut insulation parts. It is the go-to choice for high-voltage EV traction motors, heavy machinery, and demanding power generation equipment.
Why Choose Jinlu Film as Your Manufacturer
Jinlu Film is a 500um PET Motor Insulation Film Manufacturer, Factory, and Supplier with factory-direct pricing, stable thickness control, and guaranteed dielectric performance. As a factory, we support custom slitting and sheet cutting, export-grade packing, and global shipping. If you are comparing PET Motor Insulation Film manufacturers, request a sample and check our batch data against the spec sheet.
